Mobotix S-16 Flex Mount IP Camera

Discreet. Flexible. Hemispheric.

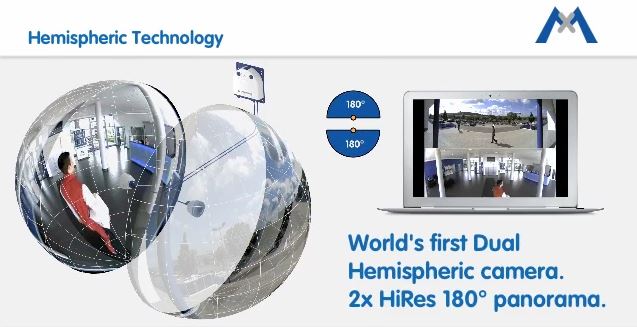

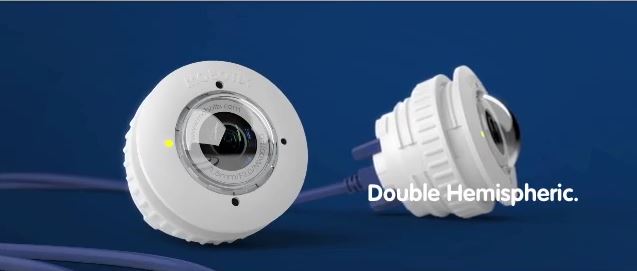

Dual camera S16D: World's first double hemispheric camera

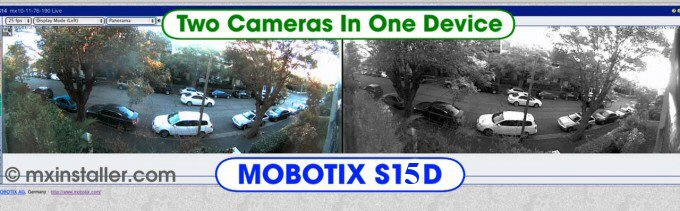

The S15D features two hemispheric sensor modules, each with a horizontal viewing angle of 180°. This way, two entirely separate spaces – next to or on top of each other, indoors or outdoors – can be monitored simultaneously using just one camera. With a black-and-white sensor, the S15D can also be used as hemispheric day-and-night camera.





Ultra flexible camera system from MOBOTIX

Dual. Modular. Unique.

True to the original: The weatherproof, robust successor to our successful MOBOTIX dual camera features interchangeable sensor modules as well as the latest MOBOTIX system technology. As a result, it remains totally unique in terms of performance, functionality and design.
  • Modular system with exchangeable image sensors
  • Weatherproof premium dual camera for all kinds of applications (IP66)
  • Combined day/night camera for 24-hour use
  • 5MP sensors: 2.5 times more details compared to full HD
  • Including video motion detection software MxActivitySensor

New 6 Megapixel Sensors (6MP)

Better Light Sensitivity MXLEO  Lowlight Exposure Optimization

The light sensitivity of the 5 Megapixel color sensors is up to four times better compared to the former 3 Megapixel sensors, which enhances the overall image quality in for instance bad weather or low light conditions.



     3  MP sensor                                                              6  MP sensor



More Details When Zooming
The new 5MP technology offers greater maximum zoom than 3.1 megapixel sensors. Image detail is improved by 27 percent. A camera with a 5 megapixel sensor not only produces better images, it can also be positioned even further away from the monitored buildings and areas. As a result, the cameras can be installed in places that are optimally protected from unauthorized access



       3  MP sensor                                                              6  MP sensor

Black And White Resolution Now Up To 3.1 Megapixel
The new cameras series 5 are the world‘s first MOBOTIX cameras that also feature a 5 megapixel night sensor, which produces black and white images of up to 3.1 megapixel. This sensor produces significantly larger images than the current 1.3 megapixel sensor, with the added advantage of improved detail enlargement thanks to the digital zoom feature.



       1 MP sensor  (B/W)                                                  6  MP sensor  (B/W)

Fact Main Advantage
4x better light sensitivity (2x with B/W-Sensors) Greatly enhanced image quality!
Higher frame rates Up to 30 fps@MEGA!
Black and white resolution up to 3.1 megapixel (+148 %) Significantly larger B/W images!
Improved zoom capability in live images, more details Color: +27 %; B/W: +200 %!

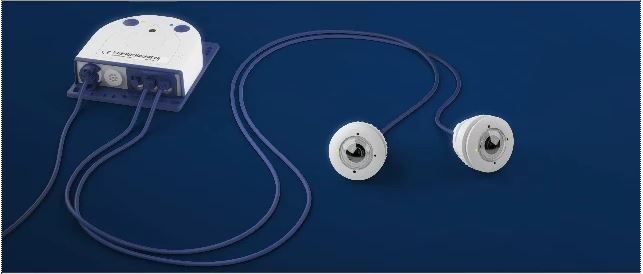

The S16D has provision to connect two Sensor Modules via 2 meter (6.6. feet) video cables. This offers unprecedented flexibility and installation options.

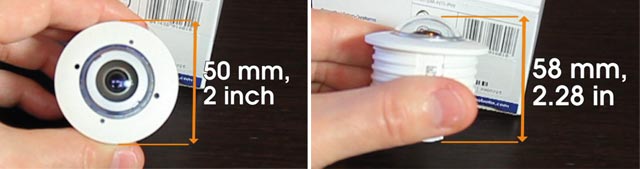

Each S16D Sensor Module is tiny in form factor, which is ideal for discreet surveillance and monitoring applications. Each module has a built-in microphone for lip-sync audio and video recording.

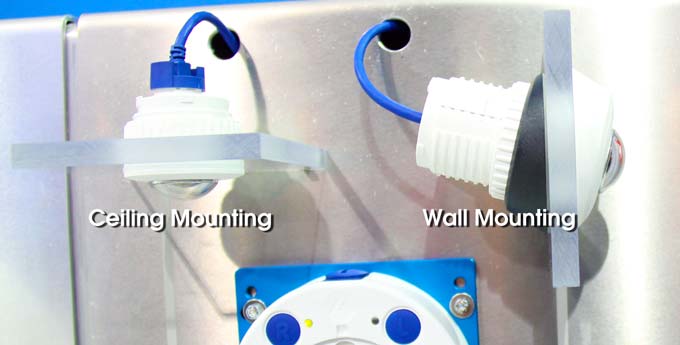

Extensions kits are available for the sensor modules that covers a variety of ceiling and wall mount installation situations. Each set offers a 40mm extension, locking nut, two 15 degree wedges, available in black and white and two wedge sealing rings. Plus two wedge sealing rings. Using the Extension Set in the right way, an S16D sensor module can installed into a wall cavity or ceiling.

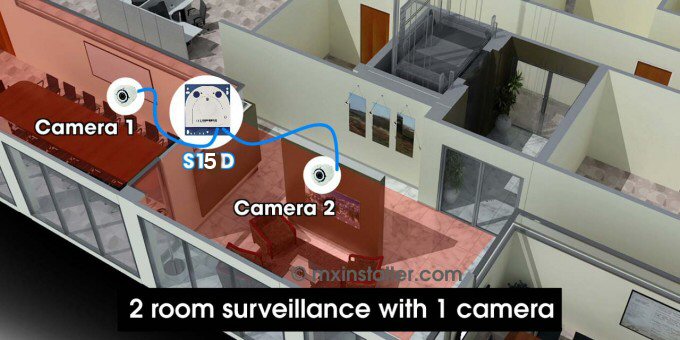

You can install the S16D to monitor two separate areas or rooms, which makes for a very cost effective way to install megapixel hemispheric video technology.



• Microphone and speaker – to connect external devices for enhanced two-way voice communication.

Both S16 devices ship with a factory fitted 4GB microSD card which can be removed and upgraded to a card of a higher capacity. Like all MOBOTIX IP cameras, the S16 has the video management software built-in, so can record directly to any standard digital storage media, no dedicated NVR or licensed Video Management Software is ever required. To access video recordings from the storage device, all you need is MxControlCenter or MxEasy – both are available from MOBOTIX for download, free of charge.

The S16 is DIN EN 50155 certified, so it’s compliant for public transport (bus or train) applications.

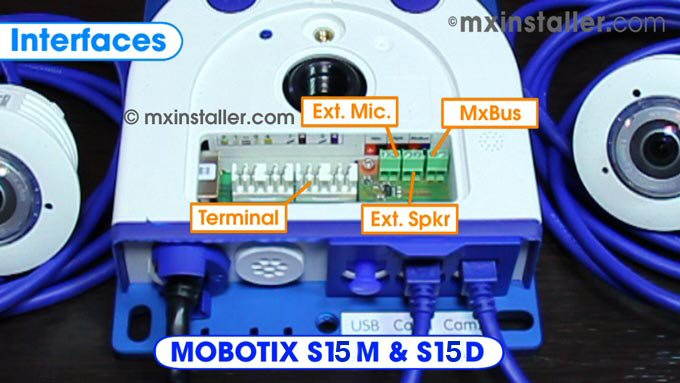

The MOBOTIX S16 internal interfaces include:

• Terminal – for installation cabling connectivity.
• MxBus – to connect functional boxes such as the Mx-GPS-Box and the Mx-232-IO-Box.
• miniUSB – for further device expansion, such as HDD, USB Wi-Fi and ExtIO.




Mono camera S16M: Hemispheric camera for concealed installation
The S15M features a permanently-attached hemispheric sensor module (day or night). The housing can be concealed behind a cover or cladding (e.g. stainless steel) of up to 6.4 mm/0.25 in in thickness.

S14M

Inconspicuous and elegant

The flat housing, including long-term flash memory and external connectors (Ethernet, MiniUSB, MxBus), can be installed discreetly and with optimal protection behind a wall or ceiling. Ideal for hotels, restaurants, office buildings, shops; but also for installation in devices like ATMs.

Weatherproof and energy-saving (PoE standard)

The entire system is weatherproof (IP66), operates in a temperature range of –30°C to +60°C (–22°F to +140°F) and can be operated all year round with power supplied via a standard PoE network cable. Power consumption is less than 5 watts.
